Blohm+Voss: Dock 10 to be converted into covered dock

A new hall-like construction designed by German architect Werner Sobek, will reinvent Blohm+Voss’ Dock 10 as Europe’s largest covered floating dock,  integrating it into the Hamburg harbor panorama.

Lürssen continues to invest in the modernization of its Hamburg shipyard. The new structure will offer improved occupational health and safety while reducing emissions. It will also render the shipyard better-equipped for confidential projects and the oftentimes temperamental Hamburg weather. The design was presented by representatives of the city, the shipyard and the architect’s office.

In covering the 287-meter-long floating dock, Lürssen is investing more than 13 million euros, strengthening the Hamburg shipyard location. “The renovation enables us to significantly expand the range of repairs and refit services for existing and potential customers of yachts, naval and cruise ships. It also further increases the appeal of the location, especially for our yacht customers,” explained Dr. Klaus Borgschulte, Chairman of the Supervisory Board for Blohm+Voss. “In addition, we will significantly improve the working conditions for our employees and make ourselves less dependent on the weather. Thanks to the new roof, we will be able to also significantly reduce noise emissions and energy consumption.”

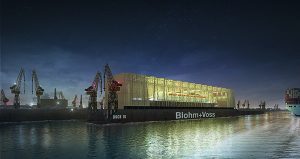

blohm+ voss

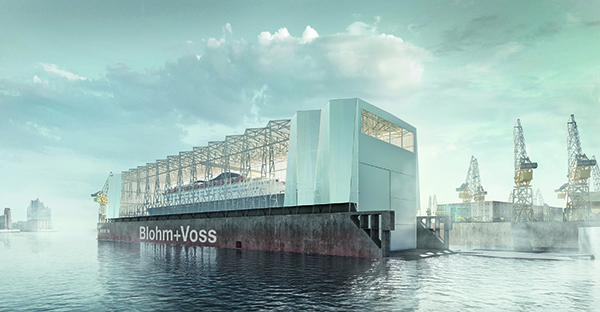

Dock 10 new roof’s design was conceived German architect and engineer Werner Sobek. The proposal was chosen due to the unique design which grants the possibility for owners to display their ships within the floating dock if desired. The design is appropriate to its prominent location and takes other important aspects into account such as technical feasibility and manageability whilst in operation. In the future, the structure will consist of a framework of panels along the length of the dock, which are alternately arranged inwards and outwards.

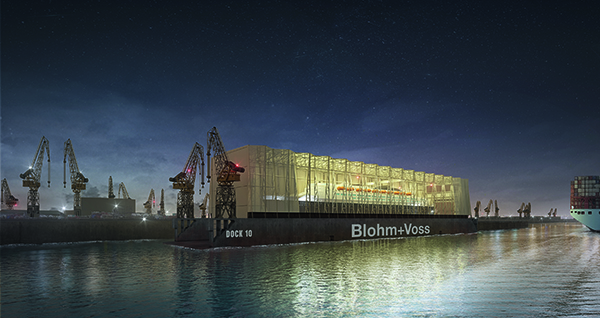

Through these stretched and curved panels, folds of reflection and shadow are created that act as an accent along the length of the dock. The translucent membrane of the exterior ensures sufficient lighting inside, while in the central area of ​​the north façade, a transparent membrane creates a kind of showcase that can be observed from the city on the opposite quayside. For more confidential projects, a custom-made drape can be drawn across the length of the membrane to provide complete privacy.

Werner Sobek stated, “The textile cover is poetic and useful at the same time. It protects people and objects from the rigors of the weather without disturbing the visual relationships between inside and outside. Dock 10 will be a significant complement to Hamburg’s beautiful cityscape.”

The construction is planned to take place from mid-2020, also using the neighboring 351-metre Elbe 17 dock. For this reason, the yacht currently lying in Elbe 17 will first be moved into Dock 10 and then both yacht and dock will be re-docked together in Elbe 17. The work on the yacht will continue unabated during the construction of the new roof. After an expected construction time of around six months, the floating dock and the yacht inside will both be relocated to the Lürssen Berne shipyard in Bremen until the vessel is scheduled to be completed. The dock is expected to then return to its original position at Blohm+Voss in Hamburg in 2022.

Specifications

Dock 10

Build year                             1966

Lifting Capacity                    50,000 t minus 3,000 t (dock cover weight) + approx. 10,000 t (ballast water)

LOA                                      287.00 m

Inner dock length                 272.00 m

Beam (exterior)                    53.50 m

Beam (interior)                     44.20 m



Planned Covered Section

Length                                  240.00 m

Beam (interior)                     44.60 m

Height                                   51.50 m including dockside
